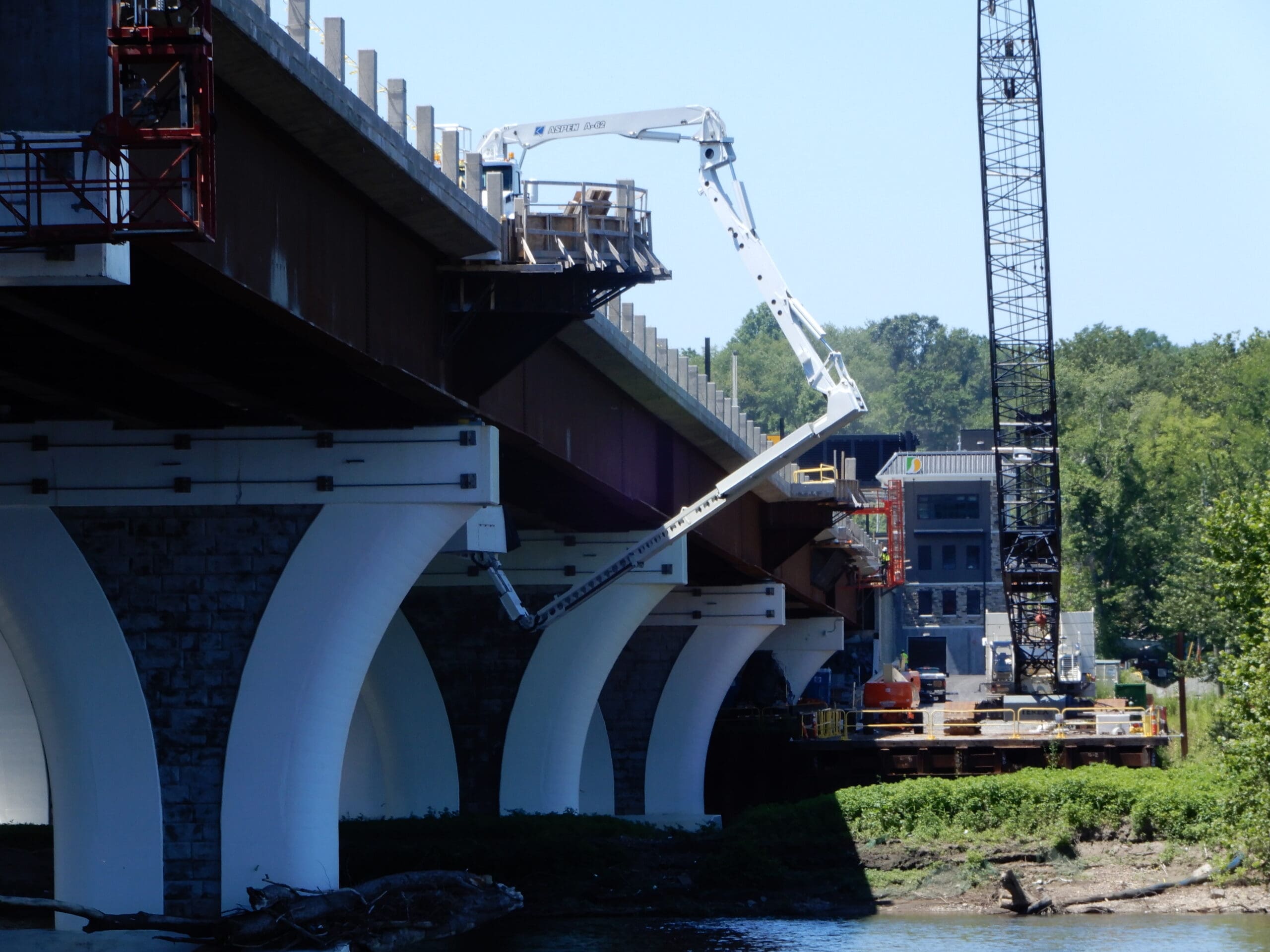

Aspen A62 Bucket/Platform

The Aspen A-62 is a top-of-the-line bridge inspection unit designed for superior access over, under, and around the widest and most complex bridge structures. With four articulating booms, two rotating turrets, and a telescoping platform, the A-62 offers over 61 ft of horizontal reach and a vertical drop of nearly 68 ft, all while remaining within the truck’s width—no outriggers required.

Key Features:

• Horizontal Reach (Under-Bridge): 61 ft 9 in (18.8 m)

• Truck Width: 10 ft

• Vertical Reach (Down): 67 ft 7 in (20.6 m)

• Vertical Reach (Up): 51 ft 6 in (15.7 m)

• Platform Size: 40 in x 60 in with access gate

• Platform Capacity: 600 lbs (272 kg)

• Deployment Time: Fast setup, no outriggers needed

• Boom Configuration: 4 articulating booms (Booms 3 & 4 telescope)

• Turntables: Dual rotating turrets for flexible side access

• Power: PTO-driven hydraulic system + diesel backup power unit

• Maneuverability: Deployable on either side; ideal for wide, fenced, or barrier-laden bridge structures

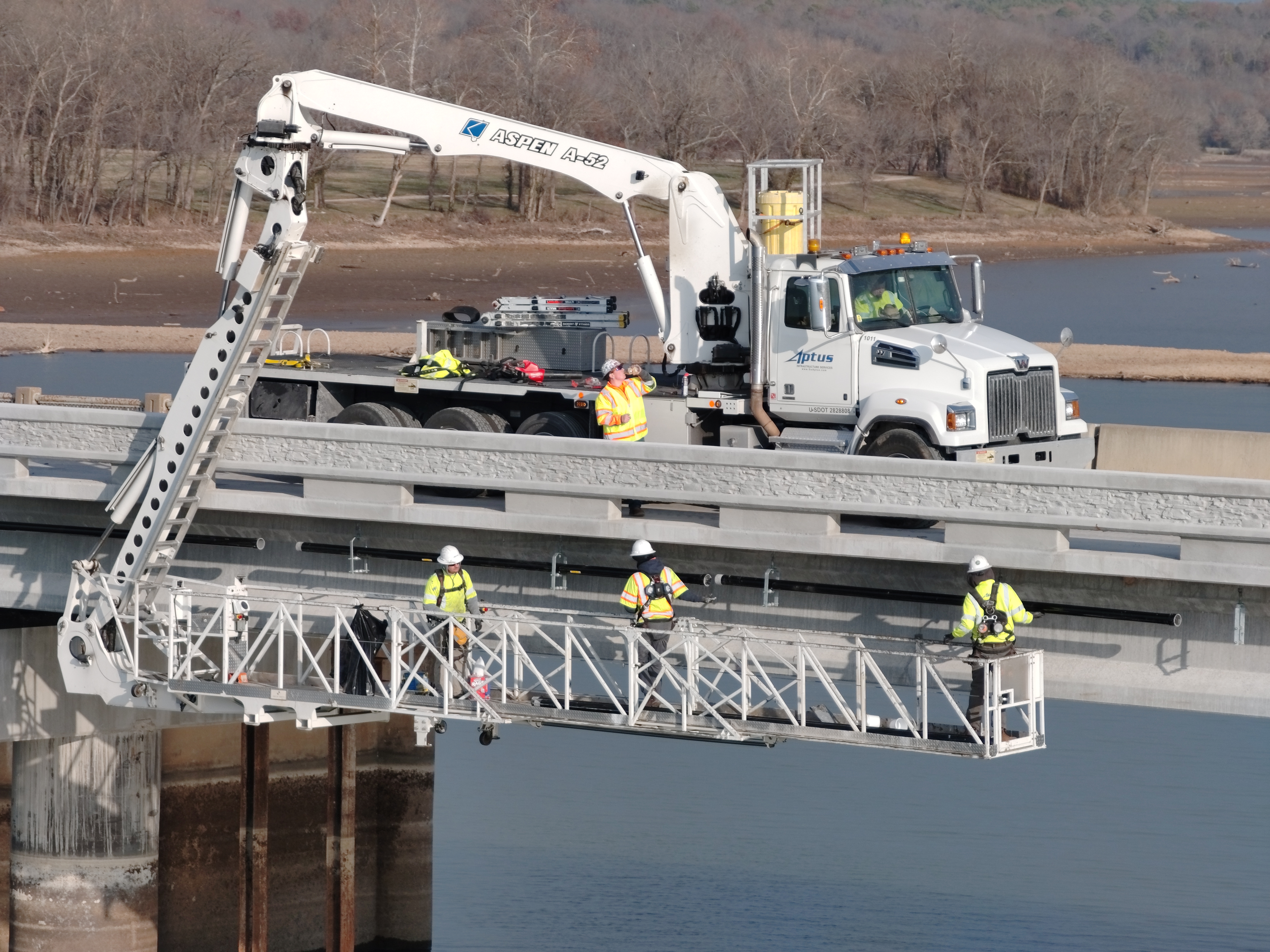

Aspen A52 Platform

The Aspen A-52 is a powerful mid-sized bridge access unit offering up to 52 feet of horizontal under-bridge reach and 47 feet of vertical access. Built for agility and stability, the A-52 is ideal for routine inspections, conduit installations, and bridge maintenance—especially where space or lane closures are limited.

Key Features:

• Under-Bridge Reach (Platform & Walkway): Up to 52 ft

• Truck Width: 12 ft
• Vertical Reach (Platform): Up to 47 ft

• Walkway Capacity (Extended): 1,500 lbs (5-person rating)

• Setup Time: Fast, efficient deployment

• Mounting: Tandem axle truck chassis with front and rear counterweights

• Power: Hydraulic system at 4,000 PSI / 12V system

• Maneuverability: Excellent for narrow shoulders, multi-span structures, and limited-lane closures

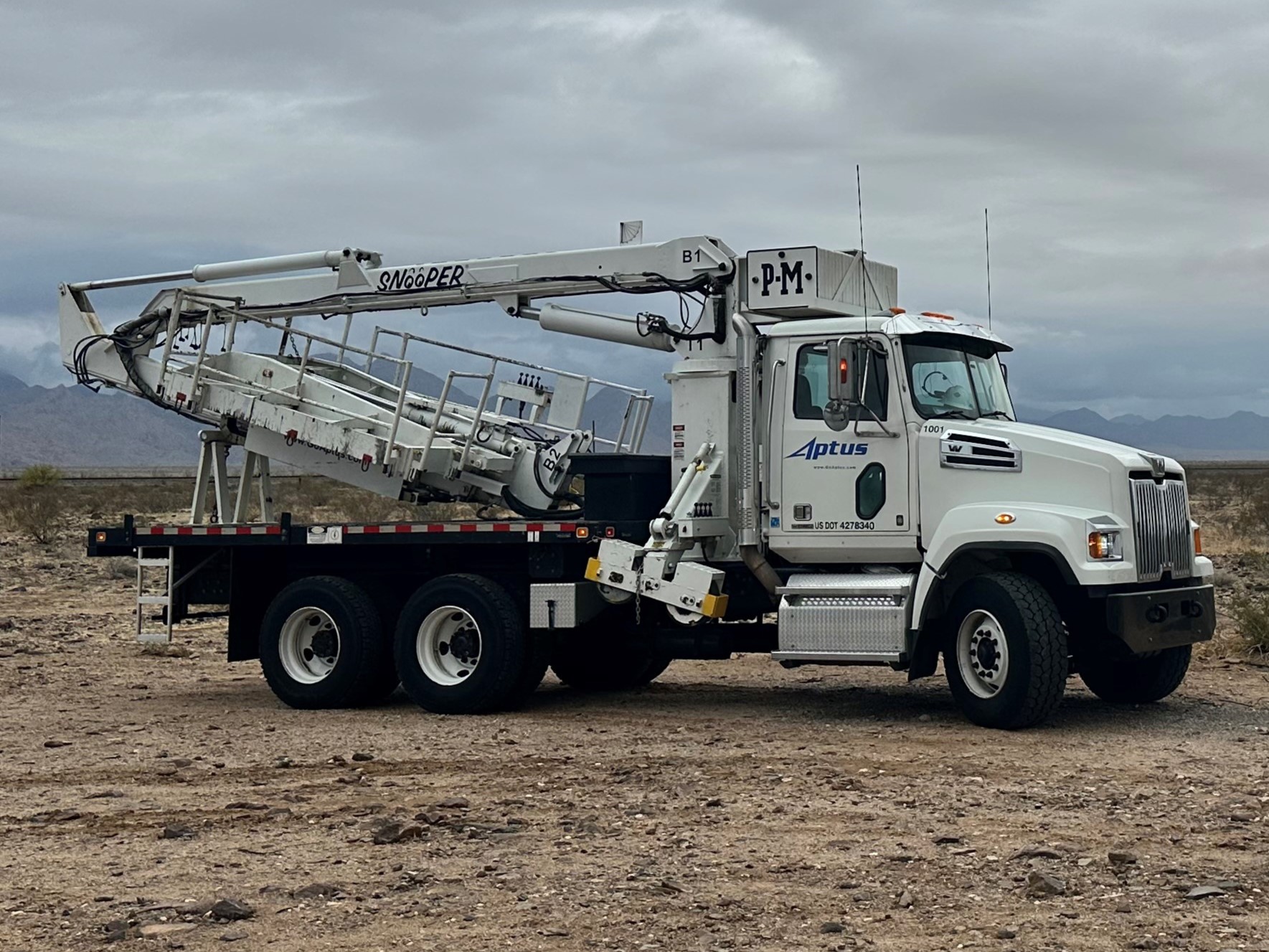

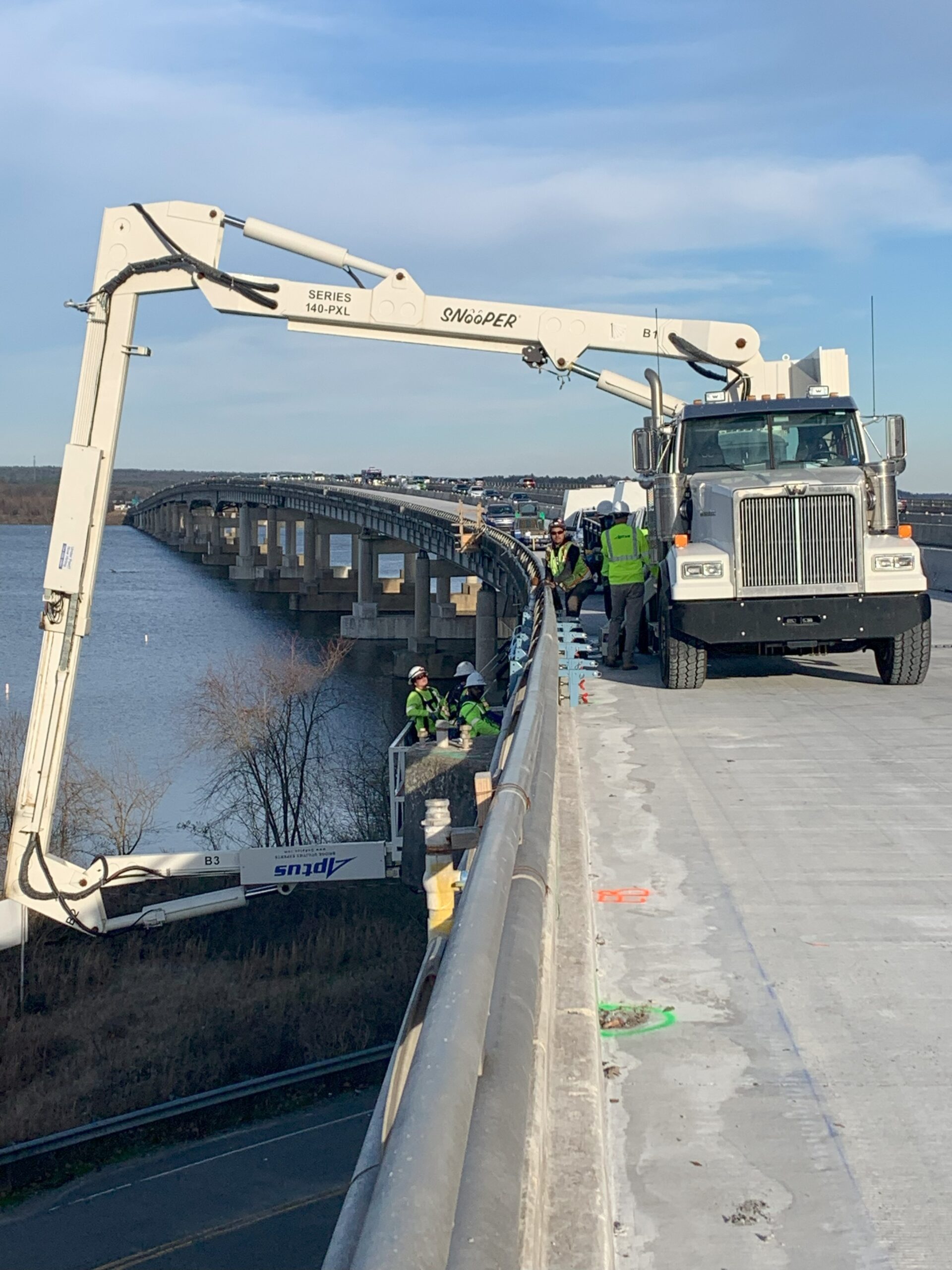

Snooper 140 PXL

The Snooper 140 PXL is Aptus’ most powerful under-bridge access truck, engineered for heavy utility work, pipe installation, and large-scale bridge inspections. With a 2,900 lb total platform capacity and up to 34 ft of horizontal reach, this unit handles oversized loads and extended reach requirements with ease and stability. This is ideal for the installation of ductile iron watermains.

Key Features:

• • Vertical Reach Below Deck: Up to 25 ft (with full boom articulation)

  • Horizontal Reach: Up to 34 ft from bridge edge to platform center

  • Platform Size: 4 ft x 15 ft with handrails and dual pipe cradles

  • Platform Capacity: 2,000 lbs payload + 900 lbs personnel/tools = 2,900 lbs total

  • Boom Configuration: 3 articulating/telescoping sections with hydraulic controls

  • Setup Time: Deploys in under 20 minutes with one stabilizer

  • Mounting: Heavy-duty Western Star 4900 chassis

  • Maneuverability: Designed for large bridges, long spans, and heavy conduit or material installs—requires minimal lane closure with single-side stabilizer operation

Snooper 140

The Snooper 140 is a dependable, field-proven under-bridge access solution. Designed for bridge inspections and light utility work, it delivers up to 40 feet of horizontal under-bridge reach, making it ideal for DOT inspections, conduit routing, and general maintenance on medium-span structures.

Key Features:

• Horizontal Reach: Up to 40 ft from bridge deck

• Platform Size: 24 in wide x 13.5 ft long (27 ft with bolt-on extension)

• Platform Capacity: 1000 lbs live load

• Boom Configuration: 2-section (Boom 1: 16 ft; Boom 2: 16–28 ft telescoping)

• Setup Time: Quick deployment

• Mounting: Tandem axle chassis

• Maneuverability: Designed for medium-length spans and urban bridge conditions with ~10 ft sidewalk reach depending on truck frame

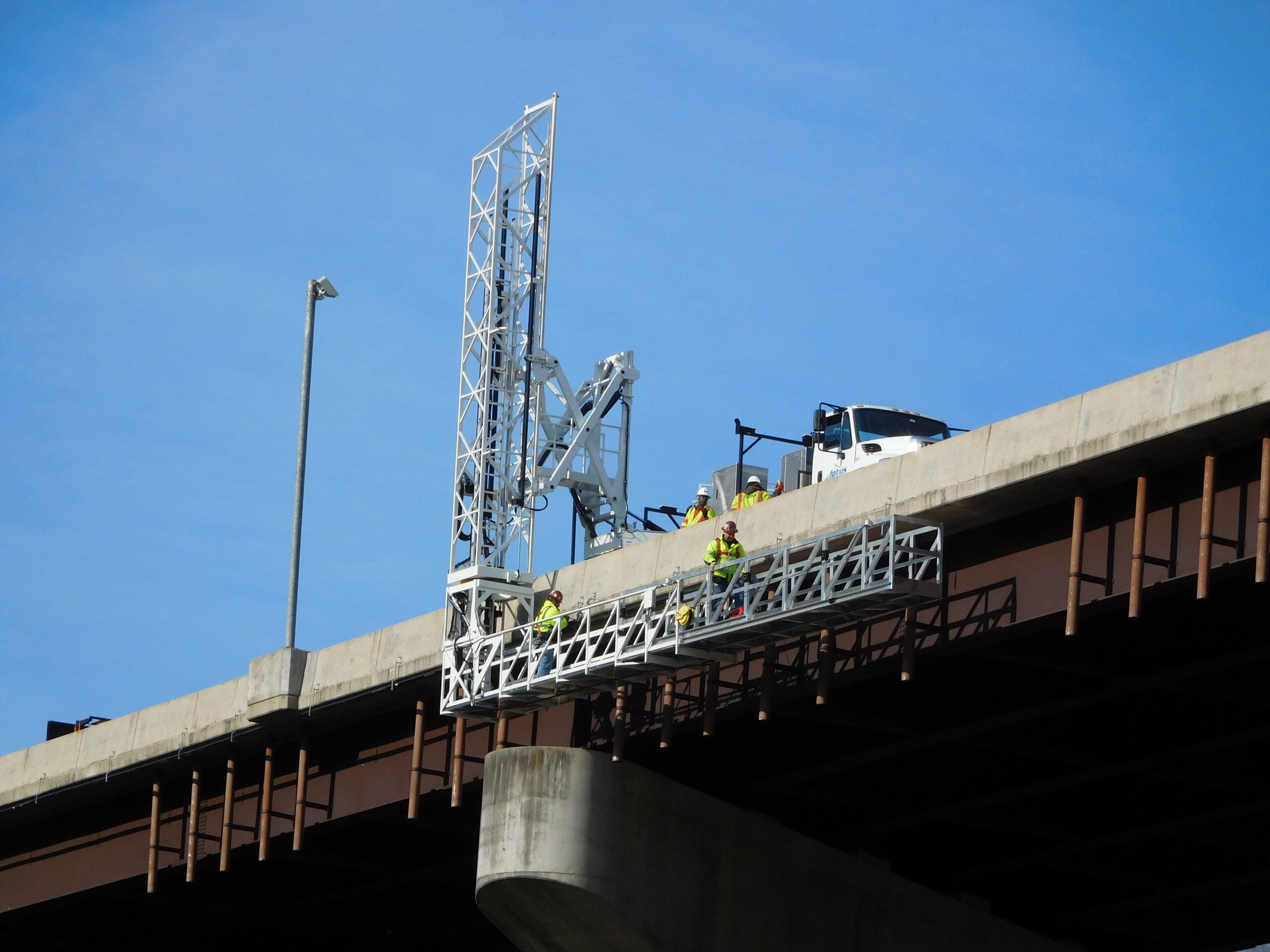

Hydra-Platform Trailer

The Hydra Platform HP35 is Aptus’ most popular trailer-mounted under-bridge access solution, offering unmatched versatility in a compact footprint. With 180° platform rotation and up to 17 ft 5 in of vertical drop, the HP35 provides safe and efficient under-bridge access from a single-lane setup—ideal for inspections, utility work, and maintenance in tight or rural bridge environments.

Key Features:

• Platform Length: 35 ft

• Maximum Drop Depth: 17 ft 5 in

• Platform Capacity: 1,000 lbs

• Platform Rotation: 180°

• Deployment Time: Under 5 minutes

• Drive System: Self-propelled hydrostatic drive

• Power: 19 HP gas engine with auto idle + hydraulic backup system

• Control System: CANbus with 7″ display, wireless remote, and voice-activated comms

• Mounting: Trailer-towable behind a standard heavy-duty vehicle

• Maneuverability: Perfect for narrow bridges, remote sites, or limited-access zones—thanks to patented tower separation and single-lane deployment

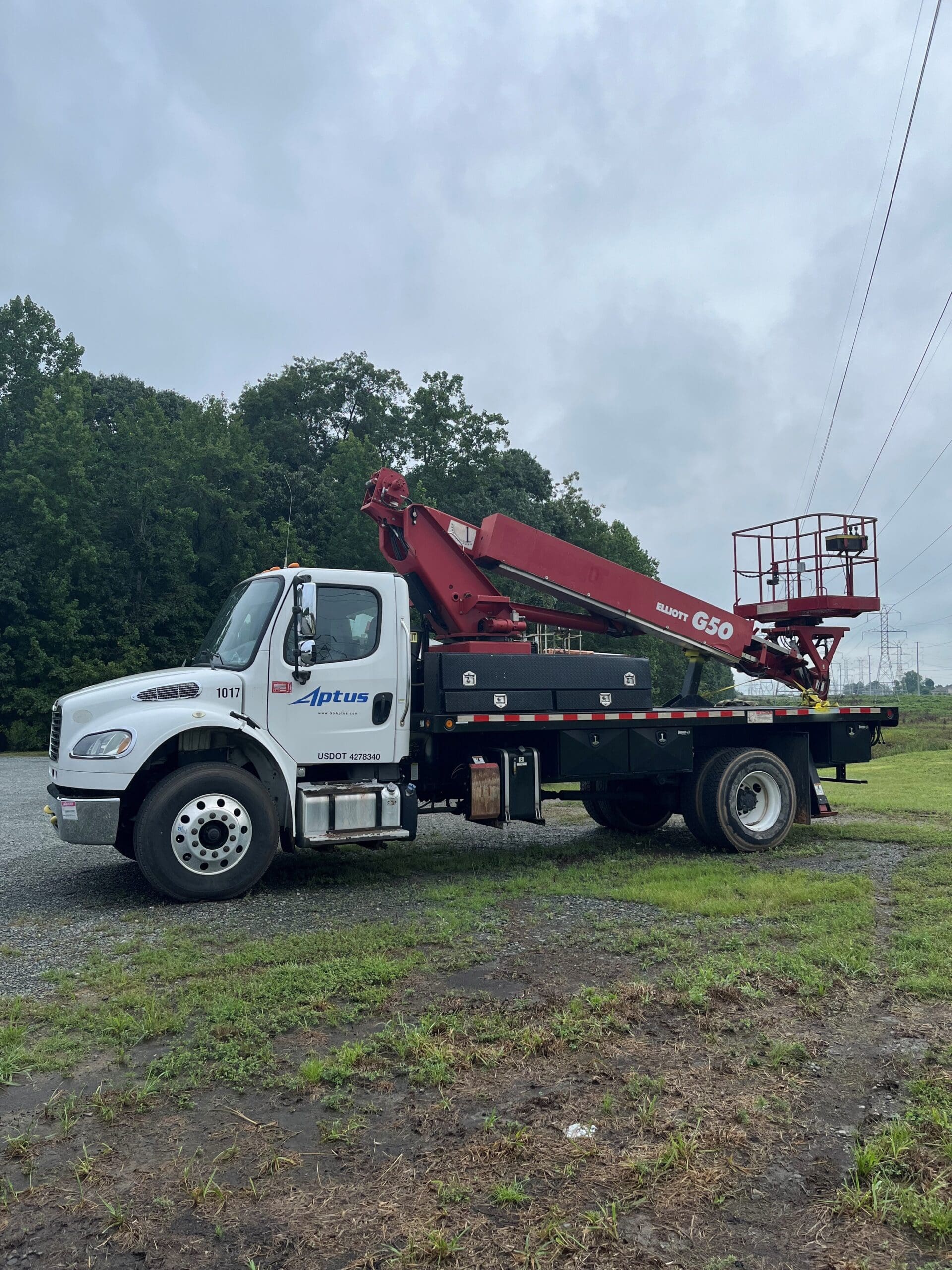

Elliot G50

The Elliott G50 is a rugged, high-performance bucket truck ideal for elevated work including lighting, signage, utility installs, and inspections. With a 55 ft working height and 40 ft side reach, this unit is perfect for overhead applications that demand precision, safety, and mobility.

Key Features:

• Working Height: Up to 55 ft

• Side Reach: Up to 40 ft

• Platform Height: 50 ft

• Platform Size: 30 in x 40 in (steel, 500-lb capacity)

• Platform Rotation: 90° hydraulic rotation

• Mounting: Tandem axle chassis with rear outriggers

• Boom Configuration: Telescopic with upper/lower controls

• Maneuverability: Excellent for roadside access, shoulders, and confined work zones
